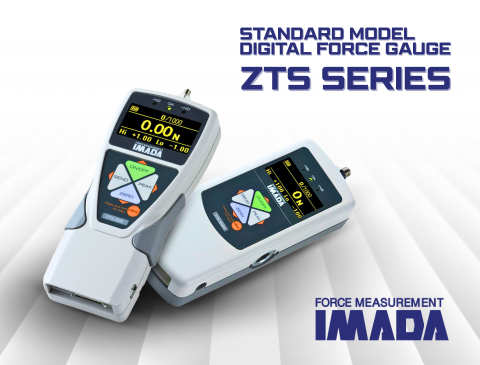

Standard Model Digital Force Gauge ZTS Series

The ZTS Series is the “standard model” line of digital force gauges from IMADA designed for general-purpose use in tension and compression testing.

-Fast sampling for both Peak Values and Continuous Data, achieving high reproducibility
-Clear OLED display with a variety of significant capabilities
-Measurement benefit increased by external output and practical functions
-Allows easy Data acquisition and management with the included software

Evolution to the Next Series

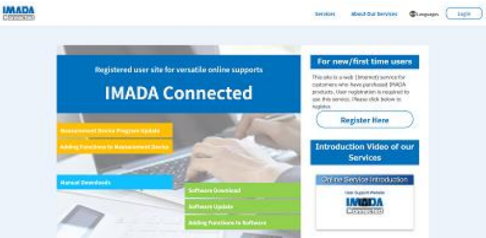

Next Series is a generic term for IMADA measurement devices with upgraded functions, performances with the essential modifications. The devices enable to install additional functions from the user support site, IMADA Connected. On the website, related data such as software and instruction manuals can also be downloaded. New Series: ZTS Series Firmware Ver.5 or later.

New Features

-Increased measurement stability achieved from further noise reduction to the measurement circuit.

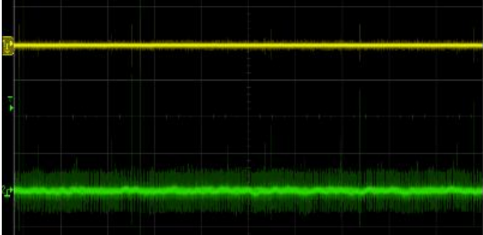

Analog output comparison
Yellow: Next series/Green: Old Model

-Force gauge program (firmware) online updatesavailable.
-Various software and additional functions downloadable to increase the measurement conveniences.

Analog output comparison
Yellow: Next series/Green: Old Model

Features

Fast sampling for both Peak Values and Continuous Data, achieving high reproducibility

High-speed sampling of up to 2000 times/second updates measured values for more accurate peak-value readings.By using the optional software sold separately (refer to P.5), graphed as continuous Data with the sampling data of up to 2000 times/second, and even frictional Load changes visualized and evaluated.

*The Test Results vary depending on the sample and measurement conditions.

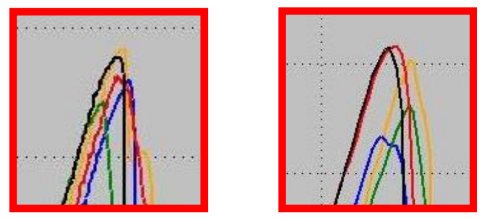

Destructive test comparison of the same
sample by sampling speed: -
-Left Sampling speed 2000Hz
-Right Sampling speed 100Hz
The less variation shown in the left results

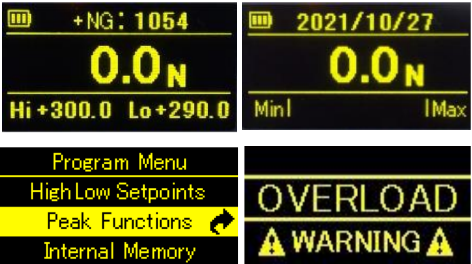

Clear OLED display with a variety of significant capabilities

The OLED provides excellent contrast and high visibility, which reduces errors in reading measurement results.In addition, the display screen can be divided into three sections, allowing to customize the display contents for liking, such as calendar, bar graph and Comparator setting values on the top and bottom.In addition, it has various display capabilities such as a multi-language setting menu and overload warning display.

Measurement benefit increased by external output and practical functions

By providing a wide range of data output options such as USB, wireless,serial communication, and analog output, it can be used in a wide range of situations from data management on a PC to interlocking with various
devices.

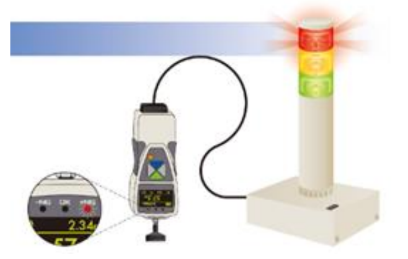

The system used to control external devices, such as stopping thethe machine at a specified load value, or to create an inspection device linked to a work process in order to improve the efficiency of the inspection process.

The warning light and other devices may be used to detect measurement abnormalities.

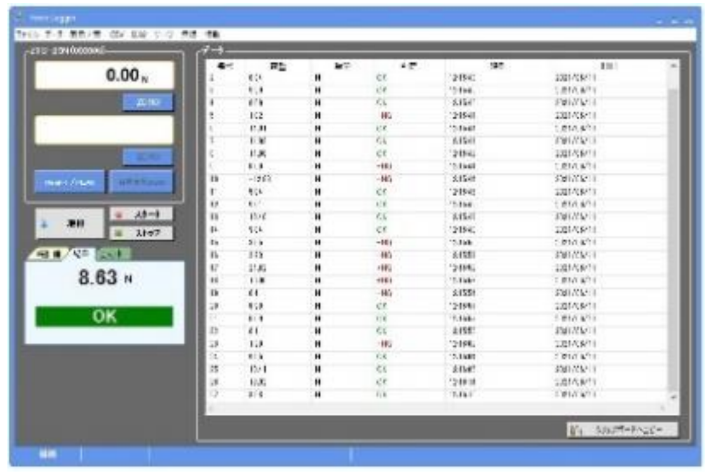

Allows easy Data acquisition and management with the included software

USB Cable and software Force Logger included in the original package to proceed with the data management when purchased. With the software, displayed values and internal memory data stored in a force gauge and continuous data acquired (10 data per second).It also allows to change and save the Force-Gauge settings from facilitating the management of measurement conditions. (Please refer to P.4 for the system requirements.
